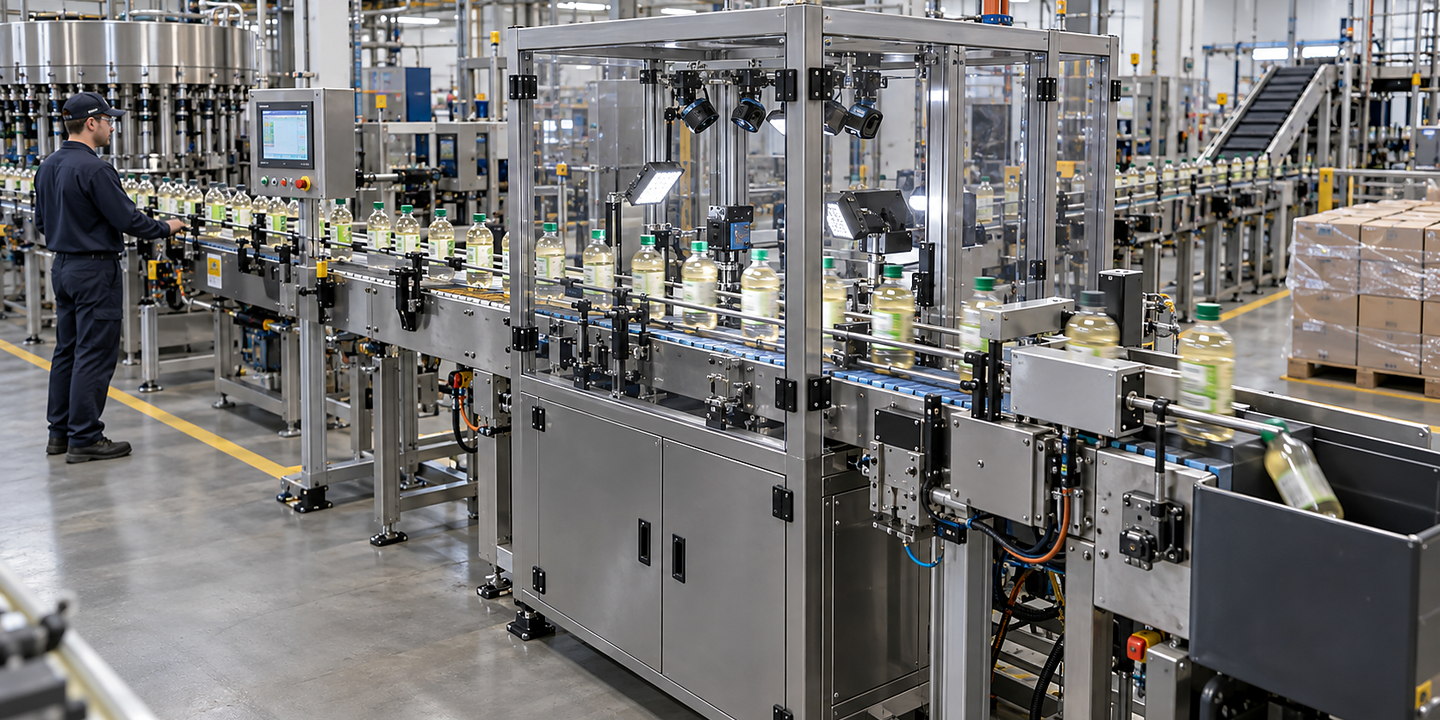

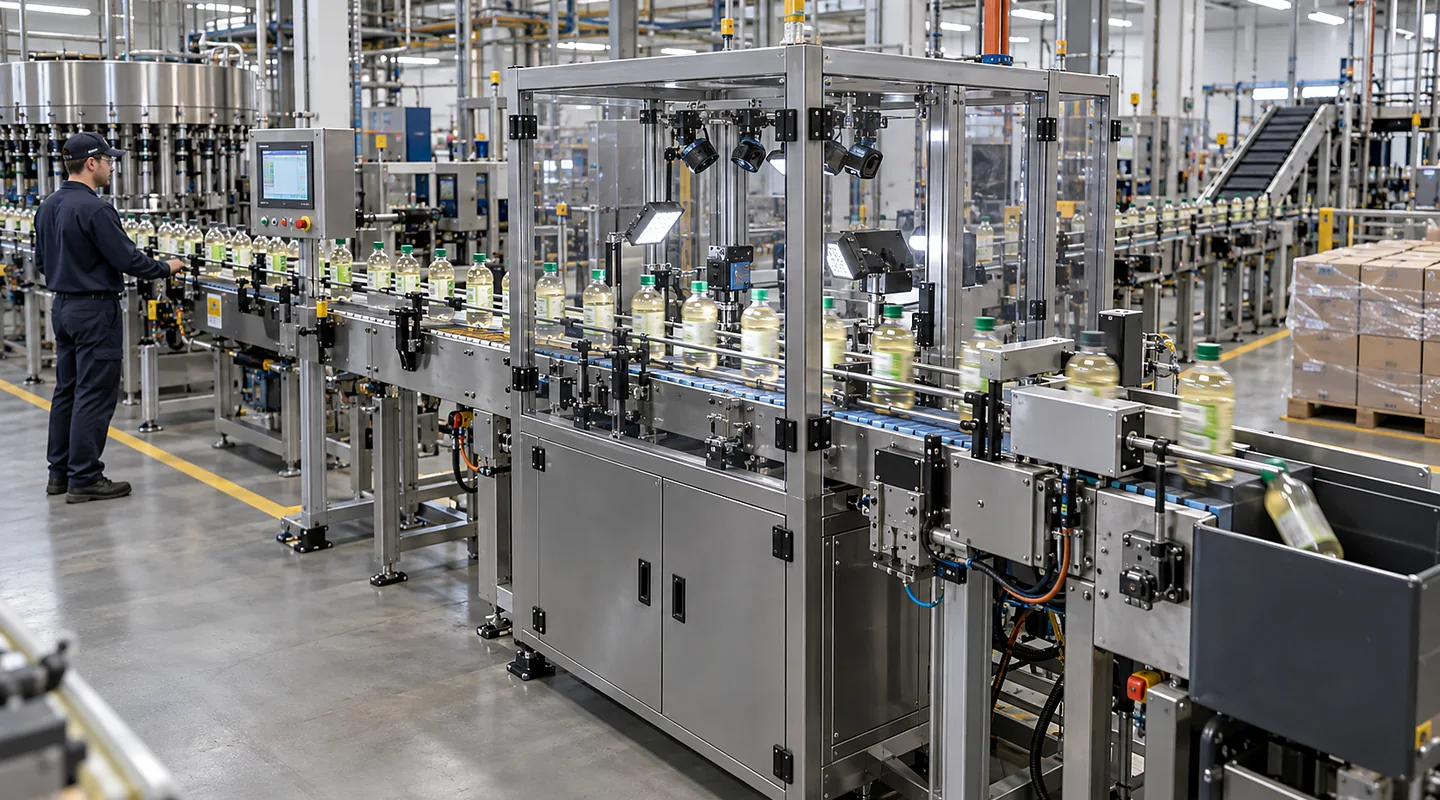

Print registration inspection compares a printed feature with an agreed reference. Define whether the task is print-to-print alignment, print-to-cut position or placement on a product, then establish the allowed movement and measurement method under actual production conditions.
Speak directly with Oxford Vision Systems about print alignment and registration checks.
Define the reference feature, printed feature and permitted displacement in each direction. Provide samples at and beyond the acceptance limits, including normal colour and background variation. Trial image capture with the actual movement and agree how measurement results are recorded and linked to the affected product or web position.
Use these decisions to define the proposed equipment and the checks needed for your application.
Name the feature used as the reference: a print mark, cut edge, label boundary or product feature. Show it on the drawing. A moving or poorly defined datum can create apparent registration error even when the print itself is unchanged.
State the required horizontal, vertical and angular checks where applicable. Provide approved tolerances from the artwork or product specification. A visually centred image is not a substitute for a defined measurement origin and acceptance limits.
Include normal print variation and examples close to both sides of each limit. Record their independent reference measurements where available. Trial examples should separate poor registration from colour change, damaged artwork or an incorrectly presented product.

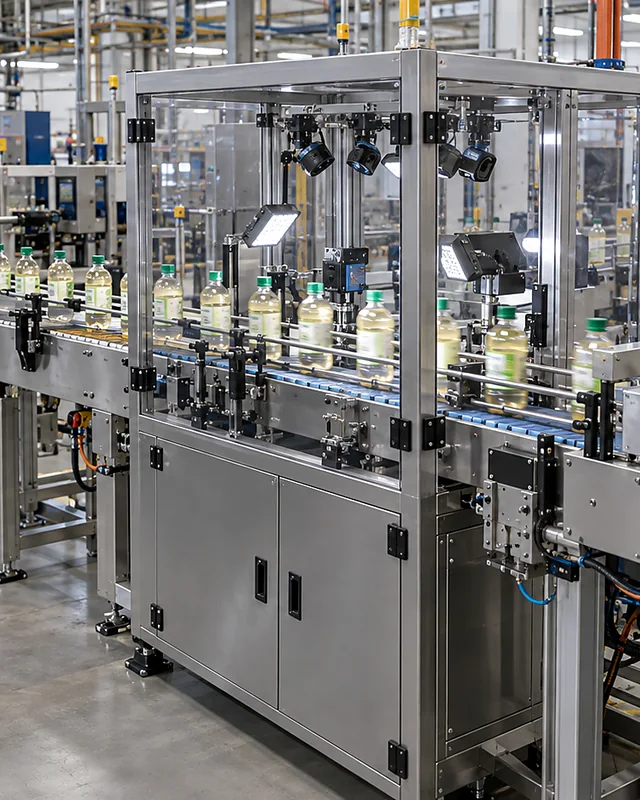

Show how packs, labels or web material move at the proposed inspection point. Include speed changes, vibration and changing presentation. Prove that the image is sufficiently stable and the result relates to the correct item or material location.

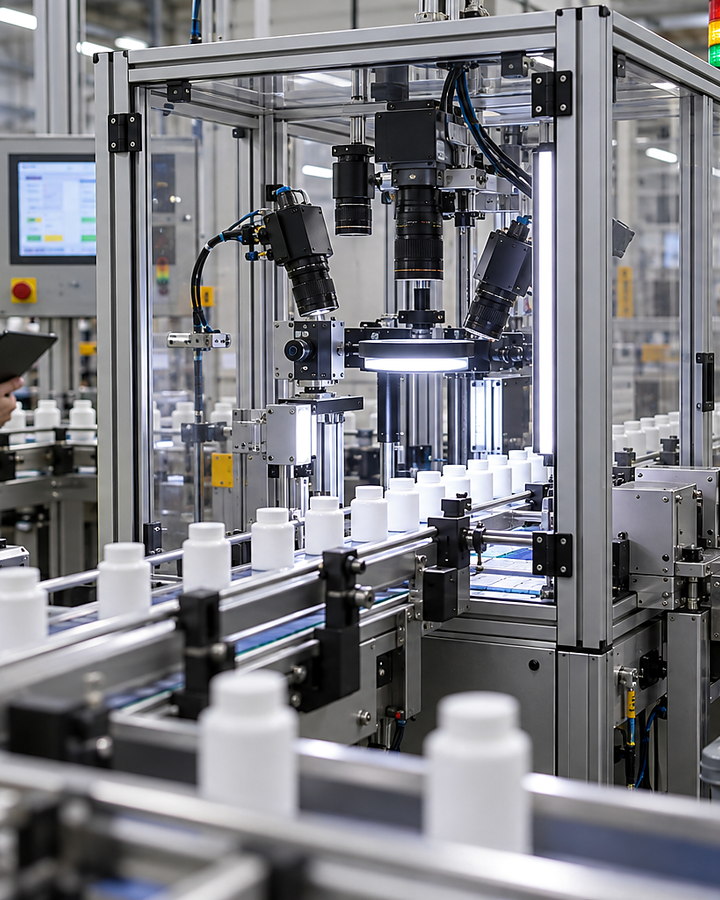

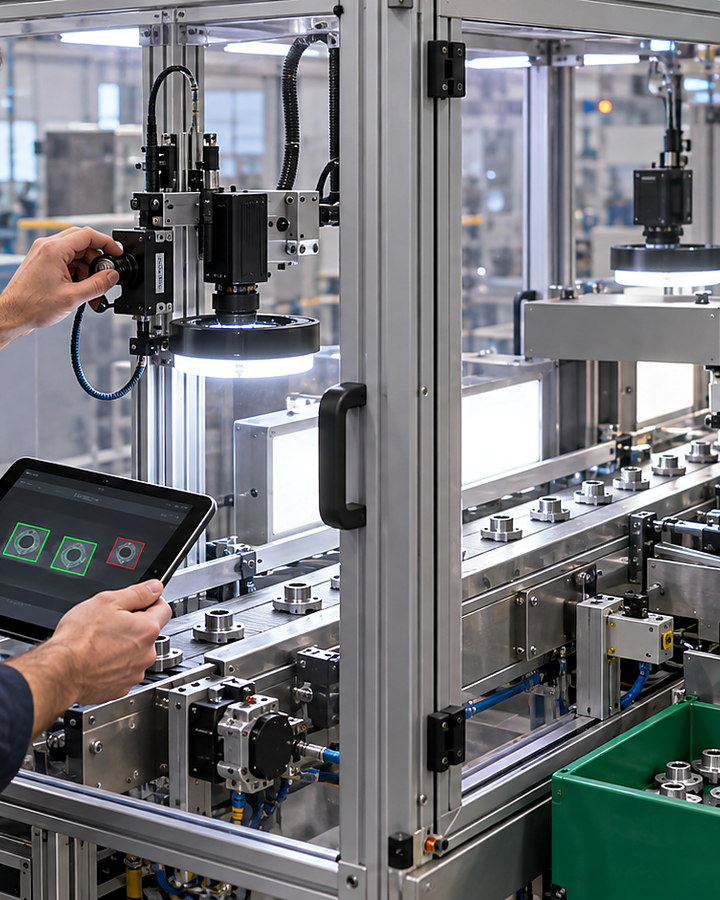

Test the reference and printed feature on the actual substrate, including finish and background changes. Reflections or low contrast may affect feature location. Record the optics and lighting arrangement with the result so the measurement can be reproduced.
Decide whether an out-of-limit result causes rejection, a held section, an alarm or a recorded trend. Link the result to the product or web position. Agree which images, measurements and setup versions are retained for investigating drift.
The right choice changes with visible defect or measurement definition for print alignment & registration checks, good, bad and marginal sample range, your line layout and required results.
Follow the sequence below to resolve the main specification questions before committing to equipment or installation.
Mark the datum, inspection feature, units and tolerances on an approved drawing or reference image.
Use acceptable and unacceptable offsets together with normal colour, substrate and presentation variation.
Confirm trigger, tracking and the response to an out-of-limit or unavailable measurement at the intended line speed.
Record calibration or reference checks and approved setup versions. Reassess relevant checks when artwork or presentation changes.
When registration readings change, separate movement of the printed feature from movement of the reference or inspection setup. Use identified samples and preserve the current settings while investigating; changing the tolerance first can hide the reason for the variation.
Record several readings of the same sample at the same defined presentation. Then repeat it across the permitted position and rotation range. If the reported offset changes as the complete sample moves, investigate datum location, presentation and imaging before concluding that the print itself has drifted. Keep the reference decision for that sample independent of the changing display.
A lateral shift, movement along the web and angular error can have different causes. Keep each reported quantity with its units and reference feature. For example, an illustrative +0.4 mm and −0.4 mm pair is a 0.8 mm spread; averaging the pair to zero conceals the variation. These numbers illustrate reporting only and are not recommended tolerances.
Compare recipe and artwork version, substrate batch, illumination condition, camera mounting and material presentation. Keep a before-and-after image where available. A new registration mark or cut datum may need a revised measurement definition rather than a wider allowance.
Decide whether the next action is a presentation trial, a reference check, process investigation or assessment of another view. Record who will resolve it and which material is affected. The selection guide remains the route for comparing concepts once the measurement question is clear.
Your final solution for print alignment and registration checks must reflect the law, current standards and site-specific risks that apply to your installation.
